Meiji EM Modular Stereo System: Fiber Optic Light Source

Meiji

$0.00 USD

PLEASE CALL OR EMAIL FOR CURRENT PRICING.

Fiber Optic Components for EMZ-8U, EMZ-8TRU, EMZ-8UD, EMZ-13VX

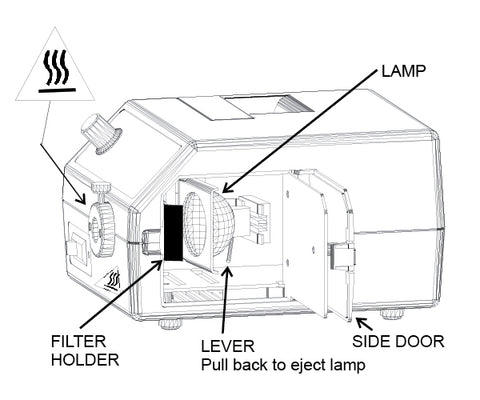

FL150/115 Power Supply Halogen 110/120V

This unit offers safe and hassle-free operation and mates securely with standard FL150/115 microscopy light guides, eliminating adapters. The MI-150 delivers 350,000 foot candles of high-intensity, cold light illumination when coupled with any of our fiber optic light guides. Standard FL150/115 provides a lamp life of over 200 hours at full intensity. This unit is available separately or as part of a complete fiber optic illumination system.

Product Information:
   • Warranty: 3 Year Warranty
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: 9 lbs (4.0kg)
   • Box Size: 15 x 15 x 9 inches

Technical Information
Input:	115 V AC (230 V AC optional)
Lamp:	150 Watt, 21 V, EKE qtz halogen \| EKE-X
Lamp Output:	1750 Lumens at fiber optic plane
Color Temperature:	3250° Kelvin at max intensity
Lamp Life:	200 hrs \| 1000 hrs
Fiber Optic Interface:	15 mm or 25 mm
Noise Level:	<25 dB
Intensity Control:	Solid State 10 - 100%
Dimension/Weight:	6.8” (W) X 5” (H) X 8.3” (D) (7.75 lbs)
Appovals:	Curtis-Straus

• FL150/30: Dual arm floppy light guide, 36” long (Special tip, for use with EMZ-13VX)

• FL150/12: Single arm light guide (36” flexible) with special end tip to fit EMZ-12, EMZ-12TR, EMZ-12TRD and MC Series microscopes

• FL150/12-60: Single arm light guide (60” flexible) with special end tip to fit EMZ-12, EMZ- 12TR, EMZ-12TRD and MC Series microscopes

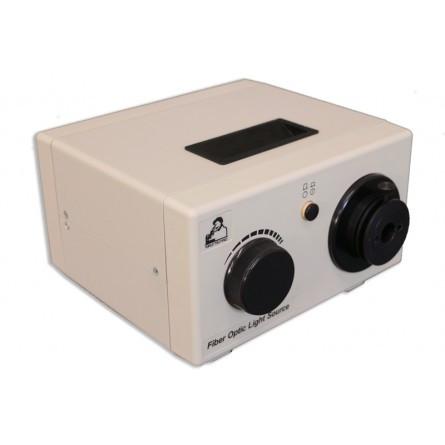

FT190/LED Power Supply LED 120V

FT190/LED Power Supply LED 120V Light Source: 120VAC, 50-60Hz operation, LED lamp 21V 150W with variable light intensity regulation. AC cooling fan (USA)

Product Information:
   • Warranty: 2 Year Warranty
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: 9 lbs (4.0kg)
   • Box Size: 15 x 15 x 9 inches

Technical Information
Input Voltage:	120 V AC50/60Hz
Output Voltage:	0-21 Volts
Rated Power Output (max):	200 Watts
Fuse Type:	2,5 Amp Slow blow
Temperature Range (Operating Storage):	0 to 45 C \| -25 to 85 C
Fiber Optic Interface:	15 mm or 25 mm
Relative humidity, Non Condensing:	5% to 95%
Vibrations:	10-500Hz 2G 10min./cycle. Period for 60 min (Each axis)
Dimension/Weight:	8” (W) X 4.75” (H) X 7” (D) (13.5 lbs)

Shipping:

Ships directly from manufacturer. Please allow 7-10 business days.
