Meiji EM Modular Stereo System: Stands - Pole

Meiji

$0.00 USD

PLEASE CALL OR EMAIL FOR CURRENT PRICING.

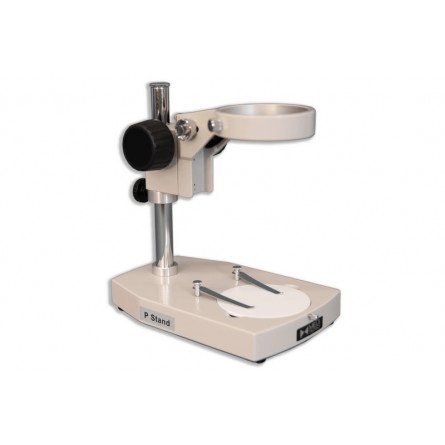

P Pole Stand with F Focus Block/Holder

The P stand is Meiji Techno America’s basic pole stand with "F" focusing holder mounted on a plain base. It accepts our EMZ, EMT and EMF stereo microscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The P stand's compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 9” height - 20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment ( F holder).
Illumination Port: No illumination, requires an external illuminator for lighting.
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Package Information: 8 lbs, 17 x 14 x 9 inches

PL Pole Stand with FX Focus Block/Holder

The PL stand is Meiji Techno’s basic pole stand with "FX" focusing holder with integral illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 or the FL150/12-60 single arm fiber optic cable attached to a FL150/115 illuminator. The PL Stand is mounted on a plain base and it accepts our 84mm EMZ, EMT and EMF stereo microscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PL stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FX Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo bodies. Integrated illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 or the FL150/12-60 single arm fiber optic cable attached to a FL150/115 illuminator. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FX holder)
Illumination Port: No illumination, requires an external illuminator for lighting.
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Package Information: 8 lbs, 17 x 14 x 9 inches

PX Pole Stand with FX Focus Block/Holder and Longer Vertical Pole

The PX stand is Meiji Techno’s basic pole-type plain stand with the longest vertical pole at 11.41” which accommodates taller specimens. Equipped with a "FX" focusing holder with integral illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 single arm fiber optic cable attached to a FL150/115 illuminator. The PX Stand is mounted on a plain base and it accepts our 84mm EMZ, EMT and EMF stereo microscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PX stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 11.41” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FX Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo bodies. Integrated illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 or the FL150/12-60 single arm fiber optic cable attached to a FL150/115 illuminator. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FX holder)
Illumination Port: No illumination, requires an external illuminator for lighting.
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Package Information: 8 lbs, 17 x 14 x 9 inches

PC Pole Stand with FC Focus Block/Holder

The PC stand is Meiji Techno America’s basic precision pole stand with "FC" focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FC Focus Holder Block with coaxial coarse and fine focusing slide block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 33mm of travel, fits 20mm mounting post. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FC holder)
Illumination Port: No illumination, requires an external illuminator for lighting.
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Package Information: 8 lbs, 17 x 14 x 9 inches

PK Pole Stand with F Focus Block/Holder

The PK Stand is Meiji Techno America’s most popular Ergonomic Wide Plain Pole stand which requires external illumination. This Ergonomic stand can accommodate up to three standard size petri dishes on the top surface. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a low profile ergonomic wide cast aluminum alloy stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593). The PK Stand is designed for the zoom (EMZ Series), and can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies. The PK stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Chemical Resistant Finish.

Included:
   • PK Stand is Meiji Techno’s Low Profile Ergonomic Plain which requires an external illumination
   • Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • PK Stand is designed for the zoom (EMZ Series), and turret (EMT Series), fixed (EMF Series) stereo bodies Pillar diameter is 20mm, height is 11” (280 mm)
• MA568: 94.5mm diameter reversible black and white stage plate (Included)
   • MA593: Two stainless steel stage clips

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
Package Information:
   • Dimensions: 265mm (11") length by 330mm (13") wide by 280mm (11") high
   • Weight: 11lbs
   • Box Size: 14 x 12 x 13

PKC Pole Stand with FC Focus Block/Holder

The PKC Stand is Meiji Techno America’s most popular Ergonomic Wide Plain Pole stand which requires external illumination and is the perfect stand if you need a coarse and fine focus movement. This Ergonomic stand can accommodate up to three standard size petri dishes on the top surface. Equipped with an integral FC focusing holder with Coarse and Fine focus adjustment and an 84.5mm round diameter opening, mounted on a low profile ergonomic wide cast aluminum alloy stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593). The PKC Stand is designed for the zoom (EMZ Series), and can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies. The PKC stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Chemical Resistant Finish.

Included:
   • PKC Stand is Meiji Techno’s Low Profile Ergonomic Plain which requires an external illumination
   • Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • PKC Stand is designed for the zoom (EMZ Series), and turret (EMT Series), fixed (EMF Series) stereo bodies Pillar diameter is 20mm, height is 11” (280 mm)
• MA568: 94.5mm diameter reversible black and white stage plate (Included)
   • MA593: Two stainless steel stage clips.

PBH Pole Stand with Transmitted and Incident Halogen Lighting

The PBH Stand is Meiji Techno America’s most popular Halogen stand with built in transmitted and incident Halogen illumination which may be operated independently or simultaneously. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568), and 94.5mm clear glass stage plate (MA569) and two stainless steel stage clips (MA593). The PBH Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret ( EMT Series), fixed (EMF Series) stereo bodies. The PBH stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Equipped with a bright 6V, 10W Halogen illumination.

Included:
   • PBH Stand is a Pole type stand with built- in transmitted and incident Halogen illumination, which may be operated independently or simultaneously
   • Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • PBH Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret ( EMT Series), fixed (EMF Series) stereo bodies Wattage 6V, 10 Watt Halogen
   • Pillar diameter is 20mm, height is 8.5” (216 mm)
   • MA569: 94.5mm diameter clear glass stage plate
   • MA568: 94.5mm diameter reversible black and white stage plate
   • MA593: Two stainless steel stage clips
   • Incident Bulb: MA570 (Factory Installed)
   • Transmitted Bulb: MA570 (Factory Installed)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
Package Information:
   • Dimensions: 240mm (9") length by 160mm (6") wide by 280mm (11") high
   • Weight: 10lbs
   • Box Size: 17 x 14 x 9
