Meiji MT4000 Series Dermatology Laboratory Microscopes
PLEASE CALL OR EMAIL FOR CURRENT PRICING.
Meiji Techno's university grade upright microscope line of biological research microscopes. The new and cost-effective MT4000 Series employs all new and improved Plan optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy, while delivering an excellent cost-to-performance ratio.
Please call for current lead times.

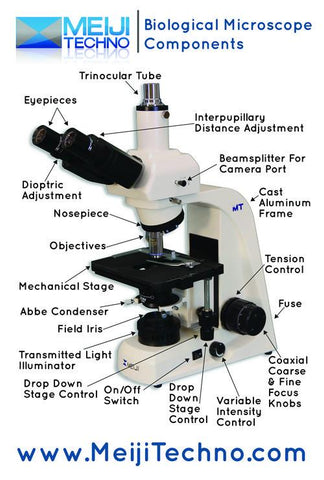

The MT4000 Series features include:
- Computer Aided Design
- All New Infinity Corrected Optics
- Ergonomically positioned controls
- Comfortable Siedentopf viewing heads
- Ergonomic Heads Available
- LED Illumination
VIEWING HEADS

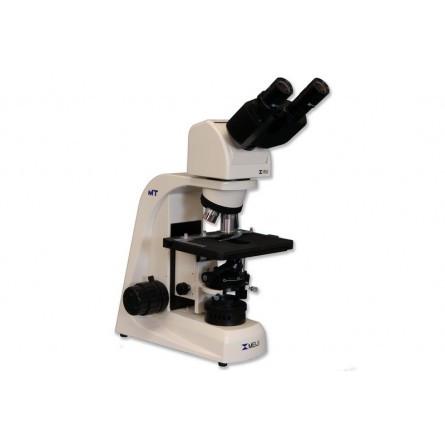

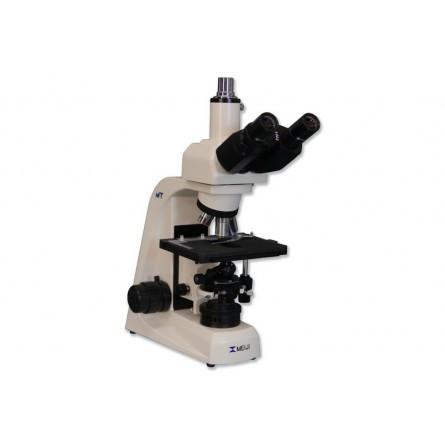

The binocular and trinocular, for camera integration, each have eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the photo/video attachment with sliding 80/20 beam-splitter.
EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.
OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.
OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield mode.
STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.
CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.
ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy. Ergonomic Binocular Viewing Head also available with Halogen illumination (EH).
Product Information
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
Package Information
• Weight: 29 lbs (8.0kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head: 390 mm(D) x 410mm (H) x 210mm(W) ( 29.0 lbs)
• Trinocular head: 390 mm(D) x 465mm(H) x 210mm(W) ( 30.0 lbs)
• Binocular Ergonomic: 390 mm(D) x 483mm (H) x 210mm(W) (31 lbs)
• Trinocular Ergonomic: 390 mm(D) x 533mm(H) x 210mm(W) (33 lbs)
Shipping
Ships directly from manufacturer. Please allow 7-10 business days.
