Labomed Lx POL Polarizing Series Microscopes (# 9151001, 9152001)

Labomed

  • $3,610.00 USD

Ask a Question

Greater Insight in the Earth and Material Sciences

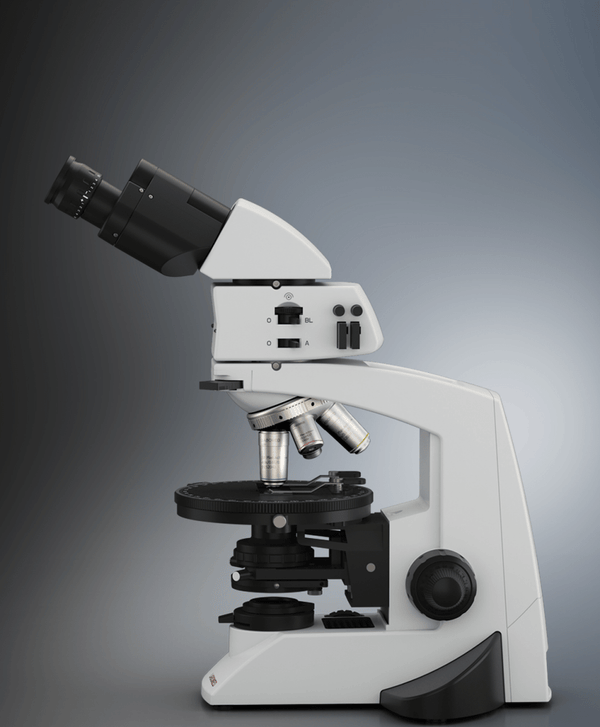

The highly streamlined Lx POL polarizing microscope delivers reliability and comfort through precision opto-mechanical engineering.  Tight design tolerances with the SF (strain-free) optical series produce near-zero optical impurity interference.  Careful attention to the sub-stage polarized extinction disc and individually centerable objectives yield a highly controlled light path with respect to stage orientation, and ultimately a sharp contrast image.
Please call for current lead times.

Lx POL Advantages:

The Lx POL polarizing microscope comes equipped with LABOMED MaxLite™ coated optics, a sputtered hard coating technology that delivers a research grade of anti-reflective and scratch resistant properties.  This is most useful in earth and materials sciences applications, where integrity of light transmission and mitigation of internal reflections are critical.

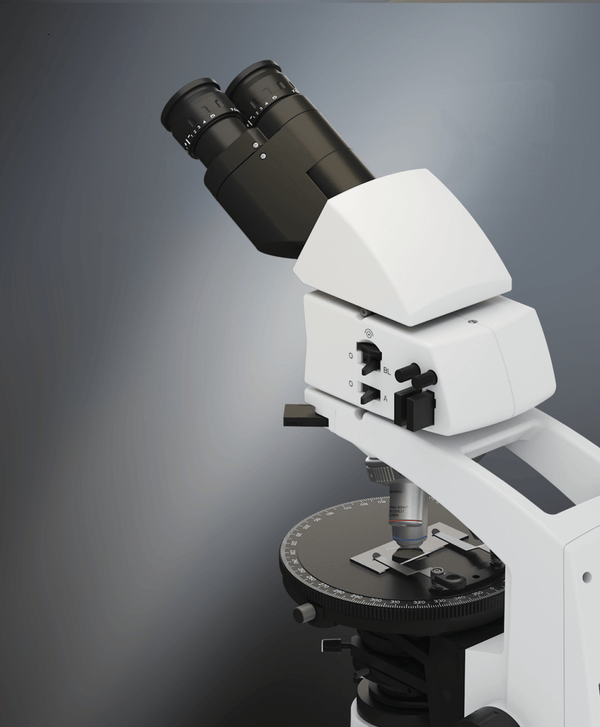

For precise conoscopic imaging, an integrated analyzer/Bertrand lens module provides individual flip-in/flip-out of the analyzer and Bertrand lens, with a conveniently located focusing dial.  Centration of the Bertrand lens is achieved through easy-access front mounted centering screws.  A convenient slider slot will accept a range of compensator plates.
A large circular stage with two locking brakes is provided, delivering a smooth 360 degrees of rotation. An optional 100x objective further complements the SF series of strain-free optics, ensuring no optical impurities interfere with polarized light. A fixed verticality crosshair is a standard feature, maintaining its orientation as IPD is adjusted.
Two compensator plate slots and two centering tool slots are located onboard the analyzer/Bertrand lens module to prevent unwanted loss of accessories. The microscope comes equipped with λ, 1/4 λ, and Quartz-Wedgeplates.

Specs

Stand Single mold sturdy stand with anti rust materials. Extended base for better stability

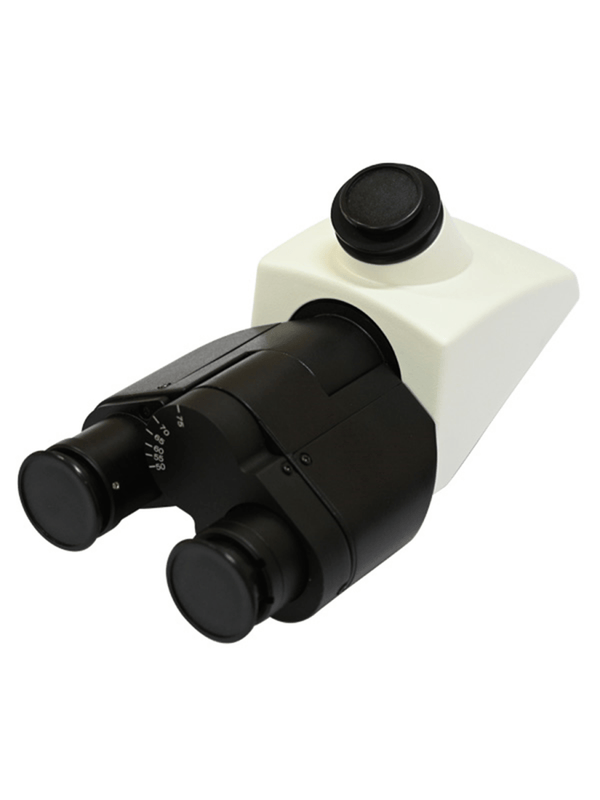

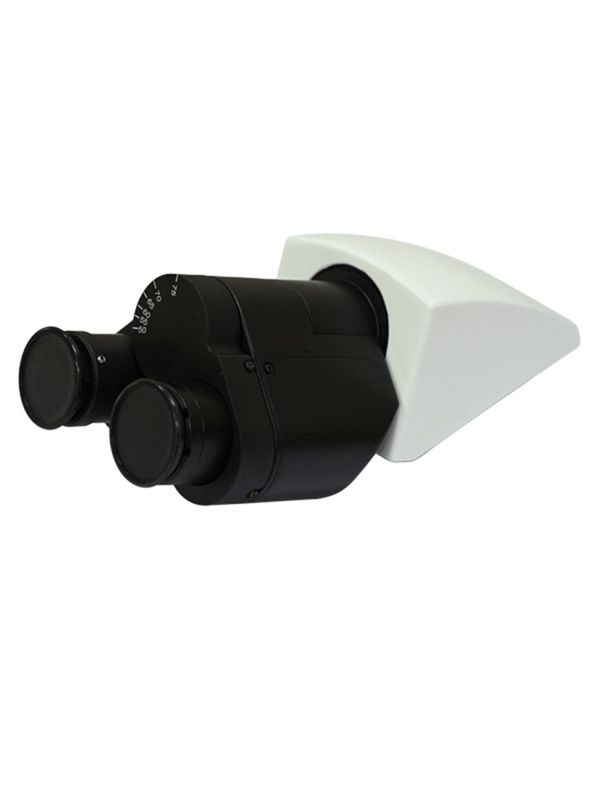

Viewing Bodies Siedentopf Binocular or Trinocular head; 30° inclined; 360° rotatable; IPD 52-75 mm
Eyepiece
WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;
optional: WF 12.5X/18 mm
Focusable Wide Field eyepiece 10x/20mm with foldable eye guard. With factory installed fixed-verticality crosshair in one eyepiece
Nosepiece Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives
Analyzer Adjustable analyzer with centration screws. Focusable Bertand lens. Slider slots and spare slider holders. Comes equipped with Lamda, 1/4 Lamda, and Quartz Wedge plates.
Polarizer Rotating polarizer with orientation markers at every 90°
Objectives SF series strain free infinity corrected DIN Plan Achromatic objectives: 4x(WD 30.0mm), 10x(WD 7.00mm), 40x(WD 0.65 mm); Optional 100x(WD0.23mm)spring loaded, oil objective
Circular stage 360° rotatable stage, 160mm with one degree increments and spring clips
Condenser 0.9 NA centerable strain free conderser
Focusing Feather touch attrition-free coaxial coarse and fine focus adjustment with auto tension adjust meant for longer life and responsive movement. Weighted fine focus.
Illumination LED illumination with intensity control, Koehler field diaphragm.
Electrical Universal input 100V - 240V AC, 50/60Hz. Built-in voltage sensing power supply.

DOWNLOAD MANUAL

DOWNLOAD BROCHURE


Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

Shipping

Ships directly from manufacturer. Please allow 7-10 business days.

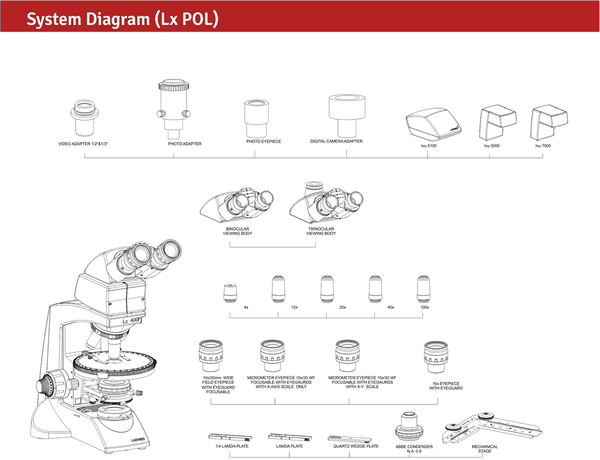

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Dual Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
