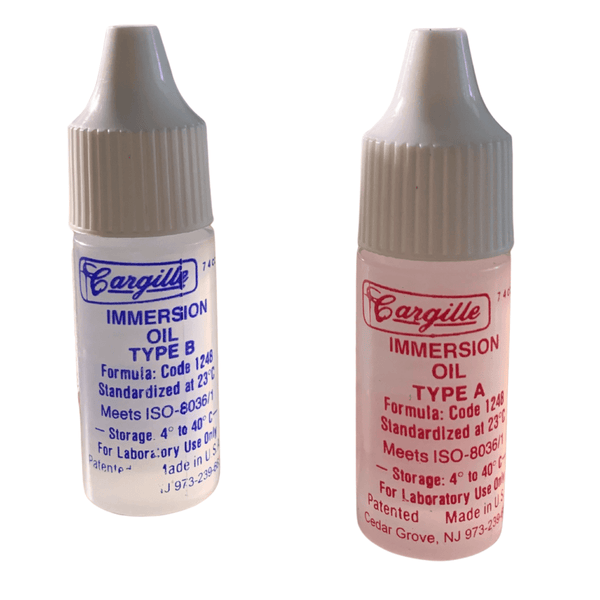

Cargille Immersion Oil

Cargille Immersion Oil. Cargille brand has led in the development and standardization of immersion oils for over 50 years. Cargille Immersion Oils meet or exceed the ISO 8036-1 Standard, and in fact, served as a member of the U.S. delegation that helped write the ISO specifications for immersion oils in conjunction with microscope manufacturers, experts, and users worldwide. Reliability and consistantcy are synonymous with the name Cargille.

Type A and Type B are stock items. Please inquire for price and lead time of other types of immersions oils.

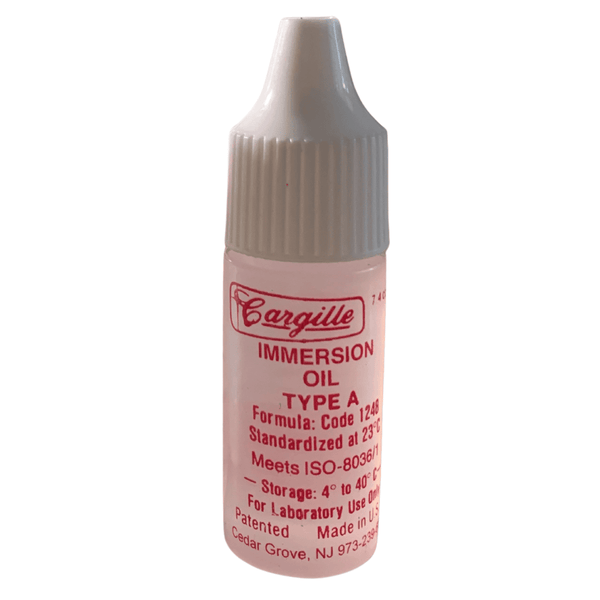

TYPE A SPECIFICATIONS

• For Normal Light Microscopy
• Standard Immersion Oil for general use
• Low viscosity for ease of use, especially helpful to beginning student
• 1/4 Ounce, MPN 16482, SKU C482
• Data Sheet

Refractive Index @ 23° C

• F Line (486.1 nm) – 1.5239
• e Line (546.1 nm) – 1.5180
• D Line (589.3 nm) – 1.5150
• C Line (656.3 nm) – 1.5114

Viscosity

• 150 cSt ± 10% @ 23°C (Low)

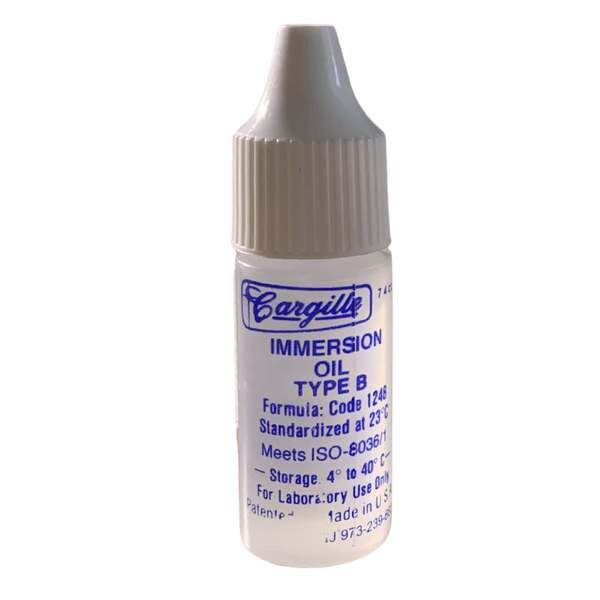

TYPE B SPECIFICATIONS

• General purpose Immersion oil
• Higher Viscosity version of Type A
• 1/4 Ounce, MPN 16484, SKU C484

• Data Sheet

Refractive Index @ 23° C

• F Line (486.1 nm) – 1.5236
• e Line (546.1 nm) – 1.5180
• D Line (589.3 nm) – 1.5150
• C Line (656.3 nm) – 1.5116


Viscosity

• 1250 cSt ± 10% @ 23°C (High)
