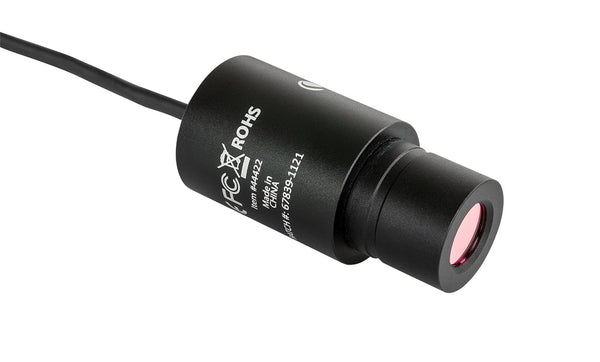

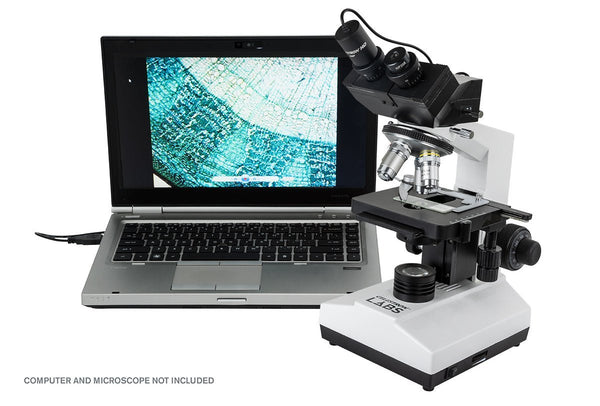

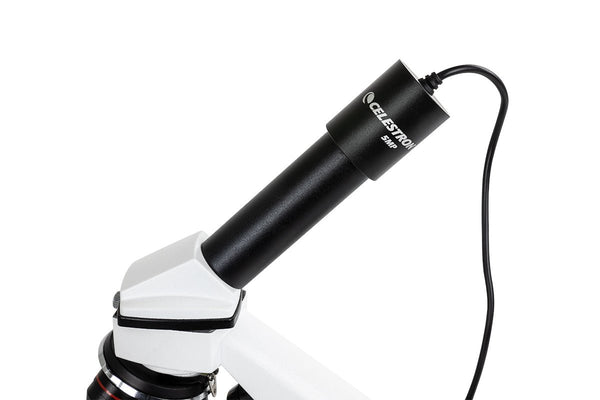

Turn your traditional microscope into a digital microscope with the Celestron 5MP Digital Microscope Imager. It’s the perfect tool to capture high resolution images and 30 fps video and save those files directly to your PC. With a rugged aluminum housing, this imager can stand up to tough use in any classroom or lab. To get started, simply choose the correct adjustment collar for your microscope—either 23mm or 30mm—and connect the imager via USB. No additional power source is needed.

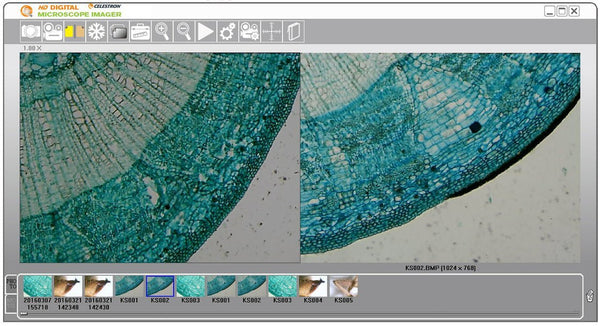

The imager works in full 5-megapixel resolution with Windows PCs and in 2-megapixel resolution with Macs. The imager’s new and improved software offers advanced features that researchers will appreciate. Note-taking mode enables you to highlight areas of your specimen for use in reports or presentations. A comparison tool allows you to compare two live streams side-by-side.
Compatibility:
Windows Windows 7.1 to Windows 11
Mac OS Mac OSX 10.9 (Mavericks) to 12.3 (Monterey)
Mac OS Mac OSX 10.9 (Mavericks) to 12.3 (Monterey)
Features:
- 5MP CMOS sensor replaces the eyepiece on your traditional microscope, turning any microscope that accepts 23mm or30mm eyepieces into a digital microscope
- Captures high resolution still images and 30 fps video, then downloads images directly to your Mac or Windows PC
- Connects to your computer via USB
- NEW robust software with additional features like measurement, calibration, note-taking and more
SPECIFICATIONS:
| Sensor: | 5 MP CMOS |
| Sensor Size: | 1/2.8" Sony IMX335 |
| Resolution: | 2592 x 1944 |
| Pixel Size: | 2 x 2 μm |
| Power Standard: | 2.0 USB (Connected to PC) - Cord Length 1.5m (4.93') |
| Video Format - Streaming: | MJPEG: 30 fps @ 1024x768/ 12fps @ 2592x1944 |
| Video Format - Recording: | MJPEG: 30 fps @ 1024x768/ 12fps @ 2592x1944 YUV: 2fps @ 2592x1944/ 1-fps @ 1024x768 |
| Shutter Trigger: | In Software |
| Software: | Celestron Digital Imager HD Software |
| Software Compatibility: | Windows 7.1 to Windows 11 | Mac OSX 10.9 (Mavericks) to 12.3 (Monterey) |

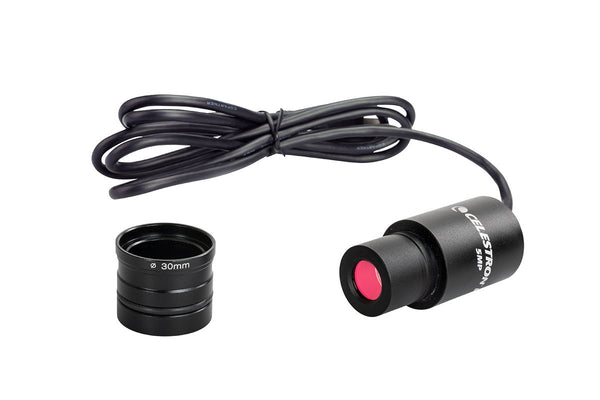

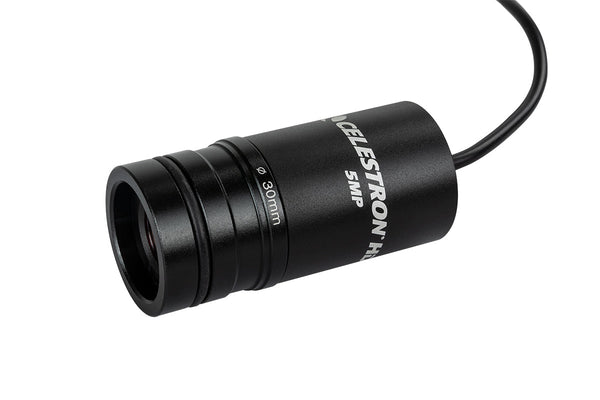

| Accessories: | (1) Aluminum collar adapter for 30mm stereo scope eyepiece tube |
| Weight: | 3.4 oz (97 g) |
| Dimensions: | 61.8mm x 30mm x 30mm (2.43" x 1.18" x 1.18") |
