Helping Make Your Next Great Discovery Possible
Lx 500 Advantage
-
Stand
Single mold sturdy stand with anti rust materials. Extended base for better stability.
-
Nosepiece
Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
-
Objective
RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
-
Focusing
Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
-
Mechanical Stage
Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
-
Condenser
Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
-
Viewing Body
Binocular, Trinocular 30° and Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
-
Eyepiece
Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
-
Electronics
Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer
-
Illumination
True Köhler illumination with halogen 6V-30W lamp with variable illumination control. LED option available.
- Shipping
| MODEL | HEAD | OBJECTIVES | BENZ $ | LIST $ |
| 9144700 | Trinoc | 4/10/40/100 DIN Inf Corrected Plan Achromatic | 2210 |
2356 |
| 9144500L | Trinoc | 10/20/40R/100R Phase, Zernike | 2709 |
3010 |

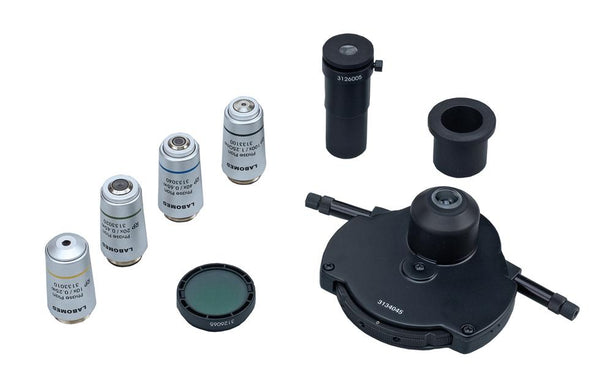

- Accessories (Optional)
Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
Dual Viewing Bridge
Auxiliary Objectives and Eyepieces
Cord Hanger Kit
Digital Cameras and Adapters
Soft Carrying Case
