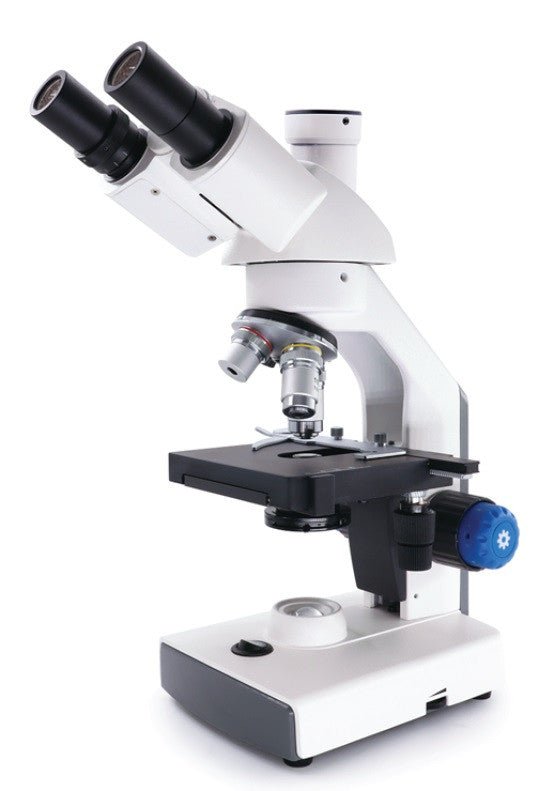

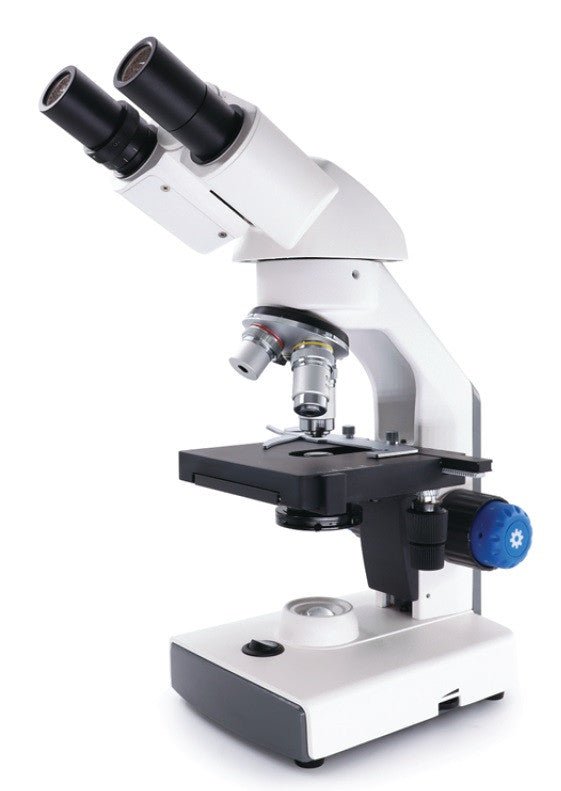

The Motic Swift Line M2650 Series Microscope is the newest arrival to the Motic Swift Line family of educational miroscopes. This series offers coaxial focusing, fixed or mechaical stages, locking eyepieces, and variable LED illumination. Ideal for elementary and middle school students. Available in monocular, binocular, and camera-ready versions that include C-mount adapter.
Model No. | M2651C | M2652C | M2652CB-3 | M2652CB-4 | M2652CT-4 | M2652CT-4
Head | Monoc | Monoc
| Binoc | Binoc
| Trinoc
| Trinoc
Objectives | 4X, 10X, 40X
DIN Achromat | 4X, 10X, 40X
DIN Achromat | 4X, 10X, 40X
DIN Achromat | 4X, 10X, 40X, 100X DIN Achromat | 4X, 10X, 40X
DIN Achromat | 4X, 10X, 40X, 100X DIN Achromat
Condenser | Built-in N.A. 0.65 with Disc | Abbe 1.25, Iris | Abbe 1.25, Iris | Abbe 1.25, Iris | Abbe 1.25, Iris | Abbe 1.25, Iris
Stage | Clips | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical
MSRP | $348 | $382 | $546 | $642 | $712 | $807
Benz $ | $313 | $344 | $491 | $578 | $641 | $726
Ships directly from the manufacturer. Please contact us for current lead times.
Specifications
The M2652C is designed for both the classroom and beginner scientist. This microscope features a low-drive mechanical stage, spring specimen holder, easy to use coaxial focusing system, and 1.25 condenser. M2652C is also rechargeable, with cool and efficient dimmable LED illumination.
OPTICAL SYSTEM
-
WF10x /18mm eyepiece.
-
Monocular viewing head with 45° inclined eyepiece.
-
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.) achromatic objectives.
-
Four-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.
-
100xR (1.25 N.A.) objective available (sold separately
ILLUMINATION
-
Variable LED light provides bright, white illumination.
-
8 hour recharge allows for up to 40hrs of use.
ELECTRICAL
-
110V - 220V switching power supply, unit shipped with American plug.
FOCUSING
-
Coaxial coarse and fine focusing controls.
-
Fine focus knob is graduated.
-
Safety rack stop prevents damage to slides and objective lenses
STAGE
-
Large 120mm x 120mm low-drive mechanical stage.
-
Spring loaded specimen holder.
-
Built-in 1.255 N.A. condenser with iris diaphragm
-
Upper limit adjustable rack stop
FRAME
-
Base dimensions: 7-1/2 in. x 5-1/4 in. (191mm x 134mm)
-
Height: 14-1/4 in. (362mm). Net wt. 6 lbs (2.72 kgs)
PACKING
-
Head and frame in molded styrofoam container with vinyl dustcover.
-
Individual: 15 lbs
-
Master case 2 count: 37 lbs
