The Labomed Luxeo 4Z addresses the needs of modern biology programs and dissecting, as well as a host of quality control and routine inspection applications.

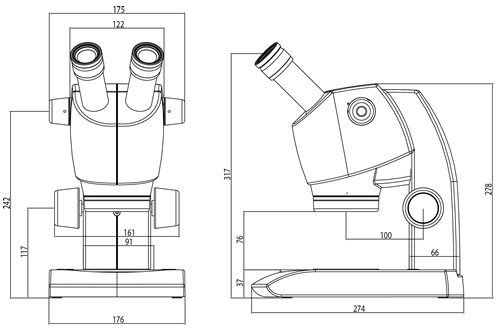

Dimension specifications. The Labomed Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value.

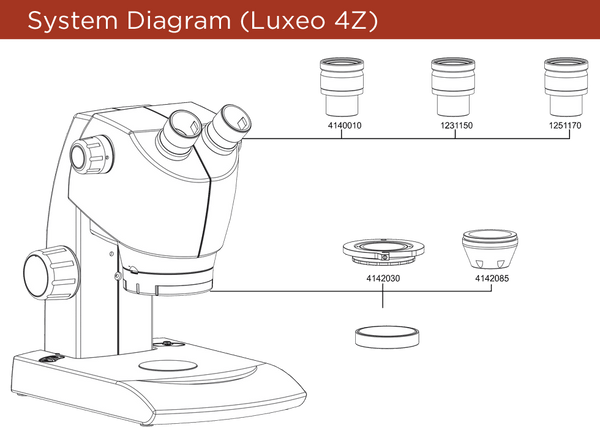

System Diagram specification of the Labomed Luxeo 4Z. Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.
The Labomed Luxeo 4Z addresses the needs of modern biology programs and dissecting, as well as a host of quality control and routine inspection applications.
Dimension specifications. The Labomed Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value.
System Diagram specification of the Labomed Luxeo 4Z. Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.

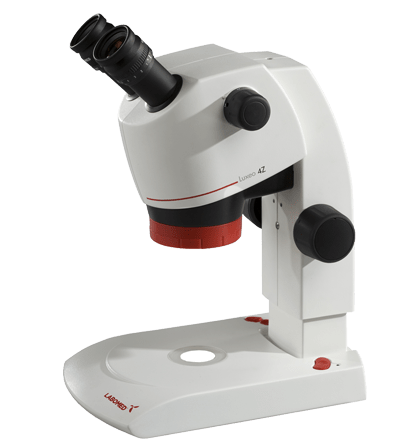

Labomed Luxeo 4Z Stereo Zoom Series Microscope (#4144000, 4143000)

Sale price
$960.10 USD
List price
$1,010.63 USD
Model:4144000

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.


Luxeo 4Z Advantages:

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination.  Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial on ring light.
Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution.  A range of focusable eyepieces ensure convenience and interchangeability.
Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.
Luxeo 4Z Advantages


 MICROSCOPE SPECIFICATIONS

  • Optical System

    Greenough

  • Magnification

    4.4:1 Zoom Ratio

  • Eyepiece

    Widefield 10x/18mm (interchangeable)

  • Diopter Correction

    + / - 5 diopters

  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment. Also available with a trinocular observation head (4143000).

  • Working Distance

    100mm

  • Magnification Range

    8x to 35x Continuous

  • Object Field Diameter

    6.6 to 28.5 mm

  • Eye Guards

    Rubber, Retractable

  • Illumination Control

    Incident / Transmitted ("Oblique" Settings) / Combined illumination control buttons with rheostat dial for light intensity control

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial

  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)

  • Transmitted Light

    3-LED super bright glow screen, low heat emission

  • LED Life

    Up to 25,000 hours

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emissions

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

  • Shipping
           Ships directly from manufacturer.
           Please contact us for current lead times.

USERS MANUAL
BROCHURE

Model No. Feature Benz $ MSRP $
4144000 Zoom Magnification 8x - 35x 877.00 975.00
4143000 Zoom with Trinocular Head 1,075.00 1,195.00

    Accessories (Optional)

    • Pointers & Micrometer Reticules
    • Auxiliary Eyepieces
    • Polarizing Kit
    • 1.5x Auxiliary Objective
    • Soft Carrying Case
