Designed for both classroom and laboratory environments, the Labomed CxL Binocular.

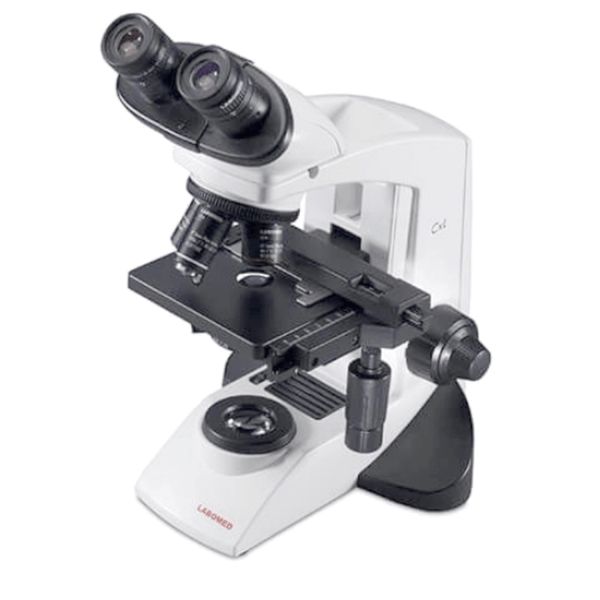

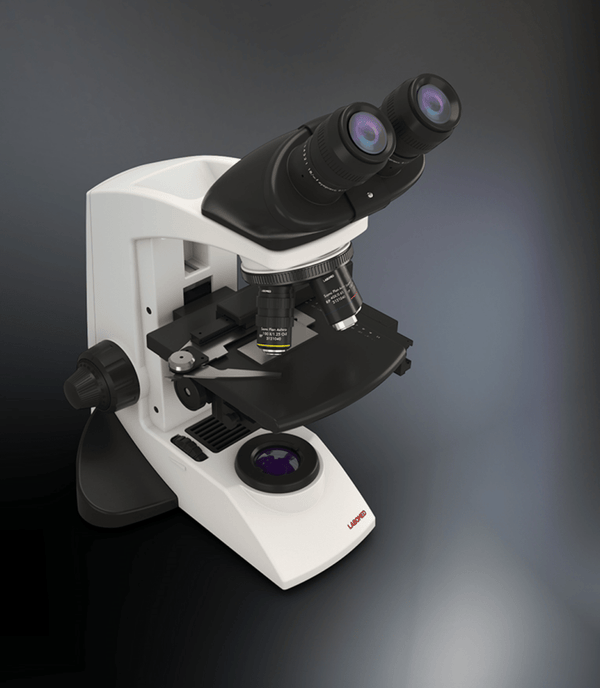

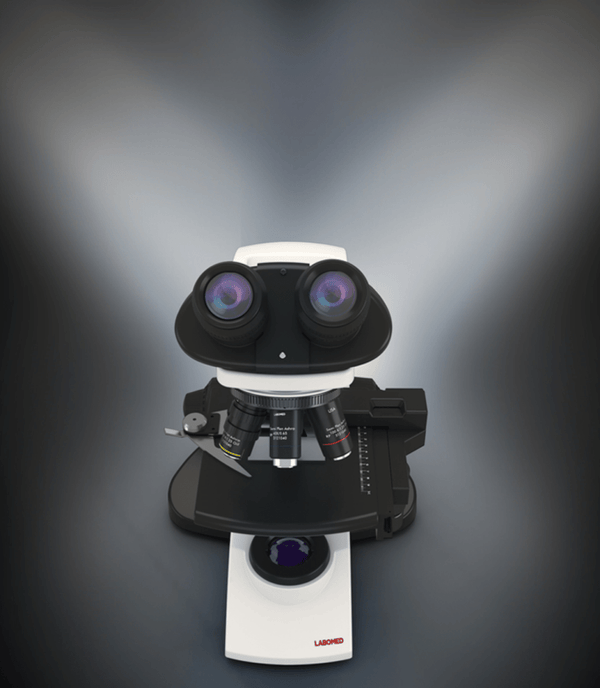

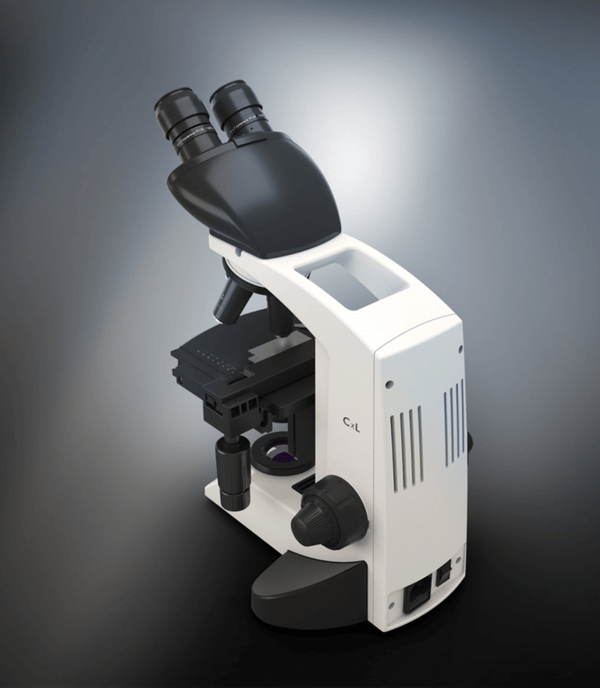

Labomed CxL Binocular Series Microscopes (#9135006, 9135010)

Labomed

Ask a Question

Where Style Meets Function

Designed for both classroom and laboratory environments, the CxL reflects a sleek design composed of a durable aluminum stand, high throughput glass and optical coatings, and brass gears, all of which position the CxL to withstand the most demanding of user environments. And with lead-free optics and paints, the CxL is a truly eco friendly solution.

Advantages of CXL

LP series Semi-Plan optics promise crisp images at all magnifications thanks to a thoughtful design and high-efficiency coatings.
CxL Advantages
A Captive Rotation feature enables users to easily and safely rotate the viewing head. Dual focussable eyepieces come standard.
CxL Advantages


MICROSCOPE SPECIFICATIONS
  • STAND

    Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

  • VIEWING BODY

    45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

  • EYEPIECES

    Widefield 10x/18mm focusable eyepieces with foldable eye guards, lockable, antifungal coating

  • NOSEPIECE

    Quadruple nosepiece turret (Ball bearing type) with rubber grip

  • OBJECTIVE

    LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • MECHANICAL STAGE

    Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

  • CONDENSER

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

  • FOCUSING

    Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

  • ILLUMINATION

    LED 6V-20W illumination with variable illumination control. Up to 100,000 hours of LED life

  • ELECTRONICS

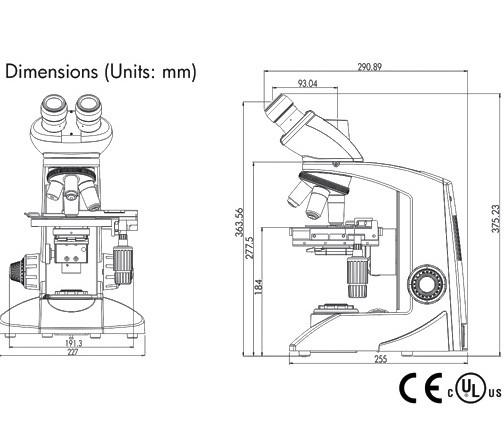

    Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer Dimensions (mm)

DOWNLOAD BROCHURE

DOWNLOAD MANUAL

 Model Objectives Illum Power BENZ $ LIST $
9135010 4/10/40R LED Rechargeable Battery 713.21
 750.75
9135006 4/10/40R/100R LED Rechargeable Battery 743.14
 782.25

Package Contents

  • Power Cable (6ft)
  • Immersion Oil (Cargille) with 100x configurations
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

     Shipping

    • Ships directly from manufacturer.
    • Please call for current lead times.

    ACCESSORIES (OPTIONAL)

    • Pointers & Micrometer Reticules Phase, Polarizing, and Dark Field Kits
    • Auxiliary Objectives and Eyepieces
    • Cord Hanger Kit
    • Digital Cameras and Adapters
    • Soft Carrying Case
