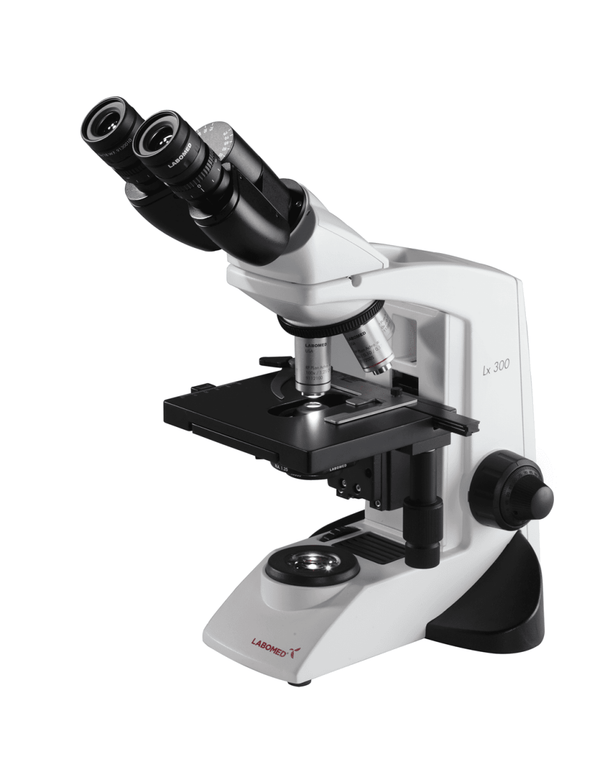

Labomed Lx300 Series Microscopes Binoc and Trinoc (#9136001, 9136003)
Labomed Lx300 Series Microscopes Binoc and Trinoc (#9136001, 9136003)
Labomed Lx300 Series (#9136001, 9136003) - Benz Microscope Optics Center
Labomed Lx300 Series (#9136001, 9136003) - Benz Microscope Optics Center
Labomed Lx300 Series Microscopes Binoc and Trinoc (#9136001, 9136003)
Labomed Lx300 Series Microscopes Binoc and Trinoc (#9136001, 9136003)
Labomed Lx300 Series (#9136001, 9136003) - Benz Microscope Optics Center

Labomed Lx300 Series Microscopes Binoc and Trinoc (#9136001, 9136003)

Sale price
$918 USD
List price
$987.53 USD
Options:Binocular (#9136001)

Today's educators call for a classroom microscope that would be ideal for continued education and pre-clincial programs. Demanded is a product with crisp optics, ergonomic features for a mature classroom, and a price point that supports institutional purchases. Provided is the Lx 300, putting all requests to rest.

Lx300 Features:

A Butterfly style binocular head will enable two distinct viewing positions for students of different heights, thus making the Lx 300 comfortable and versatile in use.
EP2 series Infinity Corrected Plan Achromatic objectives provide crisp and accurate images at all powers. The optical system allows for the introduction of digital accessories while maintaining the highest level of performance.
An eco friendly and highly efficient rechargeable LED (approx. 100,000 hours bulb life) serves as a powerful daylight color temperature illumination source that will make bulb change a thing of the past.


MICROSCOPE SPECIFICATIONS

  • Stand

    Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability.

  • Objective

    EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • Focusing

    Coaxial coarse and fine focus on ball drive system for smooth operation

  • Illumination

    Intensity controlled LED (up to 50,000 hours of LED life)

  • Electronics

    Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer

  • Eyepiece

    Wide field 10x/18mm with foldable eye guards, lockable, antifungal

  • Mechanical Stage

    Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.

  • Nosepiece

    Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

  • Viewing Body

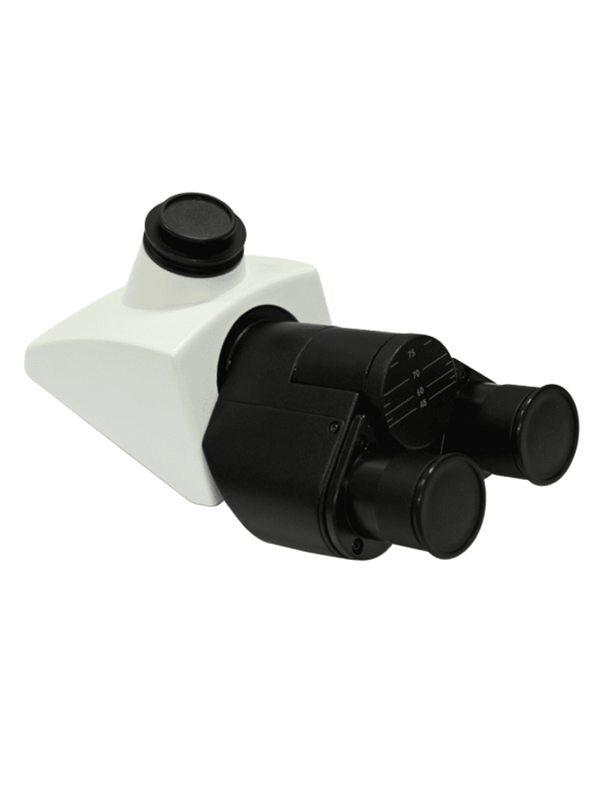

    Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm, IPD 48 - 75mm

  • Condenser

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides

  • Shipping

    • Ships directly from manufacturer.
    • Please contact us for current lead times.
 Model Objectives Illum Head BENZ $ LIST $
9136001 4/10/40R/100R LED Binocular, 45° Inclined/Rotatable 918 1020
9136003 4/10/40R/100R LED  Trinocular, 30° Fixed

1044

1160


    DOWNLOAD BROCHURE

    DOWNLOAD MANUAL



    Accessories (Optional)

    • Pointers & Micrometer Reticules
    • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
    • Dual Viewing Bridge
    • Quintuple Position Viewing Bridge
    • Auxiliary Objectives and Eyepieces
    • Cord Hanger Kit
    • Digital Cameras and Adapters
    • Soft Carrying Case
