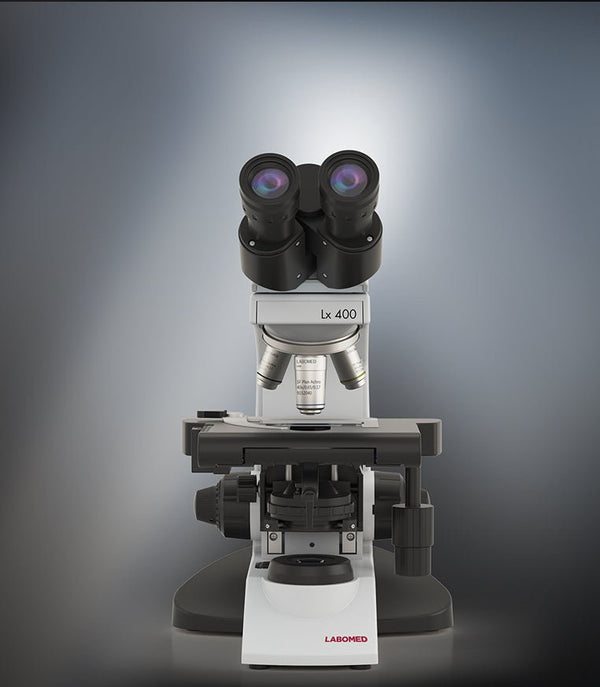

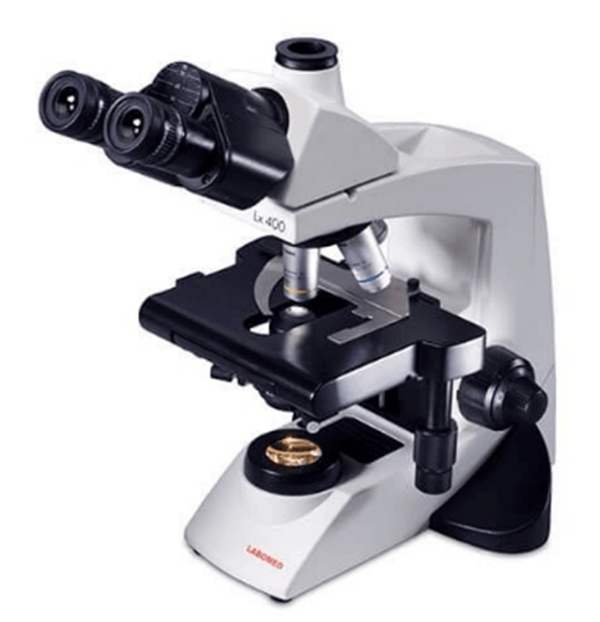

Labomed Lx400 Trinocular Series Microscopes, 9126012, 912601.
Designed for scalability, the Lx400 can take on a broad range of applications and curriculum requirements. Reflecting innovations in optical and illumination design as well as mechanical breakthroughs, the Lx400 delivers unparalleled performance to price value to an expanding list of delighted users.
Lx400 Advantages:
A fluid focus drive and low positioned X/Y slide scanning controls promise comfort. A Rackless stage ensures user safety and maximum workspace utility.
Microscope Specifications
- Objective
-
-
RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring), 100x (spring, oil), antifungal
- RP series infinity corrected DIN PHASE objectives 10x, 20x, 40x, 100x, antifungal. (Phase Contrast Kit including phase telescope, phase turret and green filter.)
-
-
Focusing
Coaxial coarse and fine focusing on ball drive system for smooth operation
-
Nosepiece
Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
-
Stand
Single mold aluminum stand with hand rests for enhanced comfort and stability
-
Eyepiece
Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
-
Illumination
LED (built in rechargeable battery) illumination with variable illumination control. Up to 100,000 hours of LED life
-

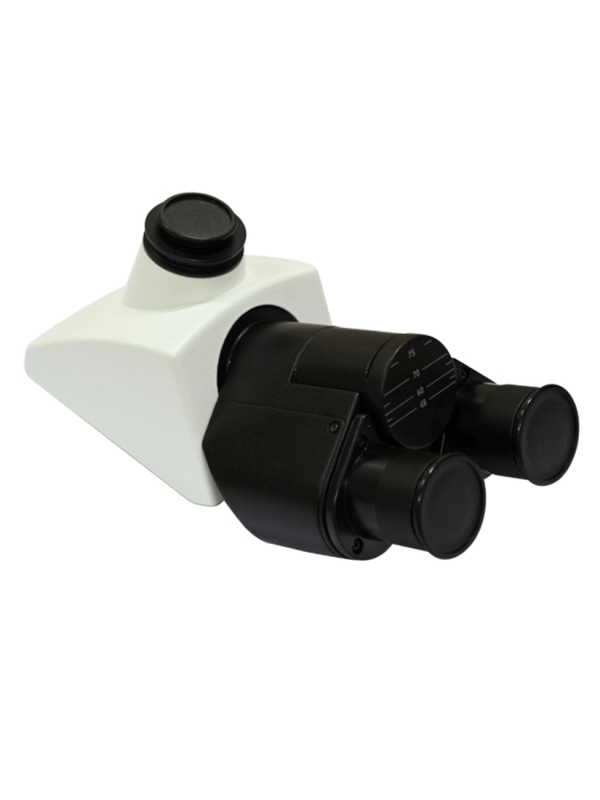

Viewing Body
Siedentopf Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm
-

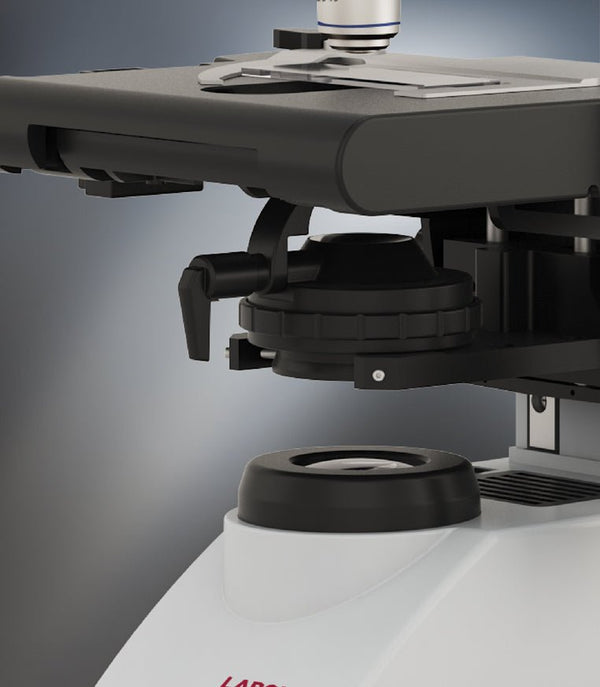

Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides
-
Electronics

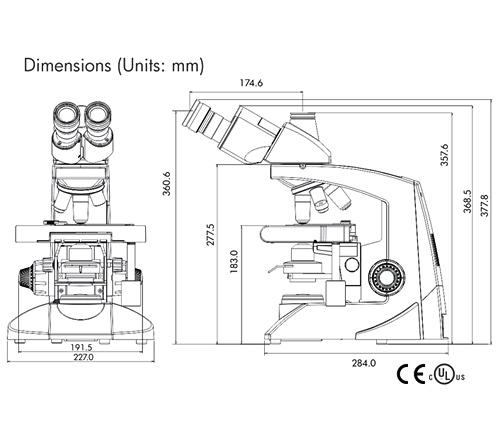

Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer Dimensions (mm) Labomed Lx 400 Laboratory Microscope Line Drawing
-
Mechanical Stage
Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip
| Model | Objectives | Benz $ | List $ |
| 9126012 | DIN Infinity Corrected Plan Achromatic | 1449.00 | 1525.00 |
| 9126018 | DIN Infinity Corrected Phase | 2090.00 | 2200.00 |
Accessories (Optional)
- Pointers & Micrometer Reticules
- Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
- Dual Viewing Bridge
- Quintuple Position Viewing Bridge
- Auxiliary Objectives and Eyepieces
- Cord Hanger Kit
- Digital Cameras and Adapters
- Kohler Kit
- Soft Carrying Case
