MICROSCOPE SPECIFICATIONS

Stand

Single mold sturdy stand with anti rust materials. Extended base for better stability.

• Nosepiece

  Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip

• Objectives

  • RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring, oil), antifungal coated

  • Phase Objectives, 10x, 20x, 40 (spring) 100x (spring, oil), Zernike,

• Focusing

Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation

• Mechanical Stage

Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder

• Condenser

Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides

• Viewing Body
  • Binocular 30° incline, 360° rotatable, Inter pupillary distance 48 - 75mm with height adjustment
  • Ergonomic 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment

• Eyepiece

Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated

• Electronics

Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer

• Illumination

Köhler LED illumination with intensity contro

• Packaged Contents
  • Power Cable (6ft)
  • Cargille Immersion Oil
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

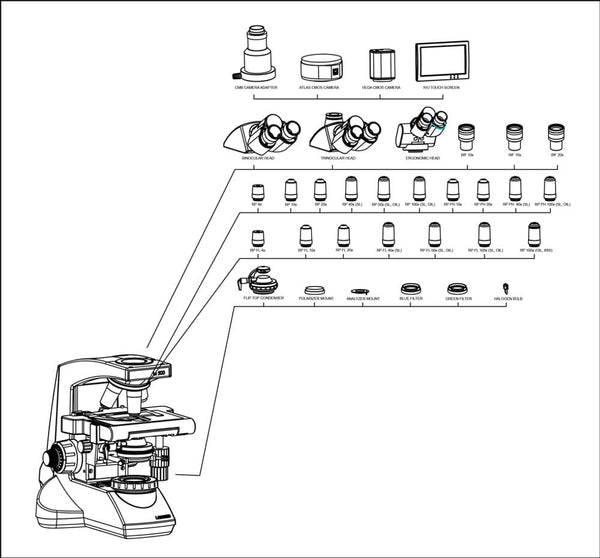

Accessories (Optional)

• Pointers & Micrometer Reticules
• Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
• Dual Viewing Bridge
• Auxiliary Objectives and Eyepieces
• Cord Hanger Kit
• Digital Cameras and Adapters
• Soft Carrying Case
