Labomed Lx500 Series Binocular Microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.
Lx 500 Advantage
RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity. Proprietary MaxLite coatings further enhance optical performance.
With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.
A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.
True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Rechargeable LED illumination with intensity control (approx. 100,000 hours).
MICROSCOPE SPECIFICATIONS
Stand
Single mold sturdy stand with anti rust materials. Extended base for better stability.
Nosepiece
Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
Objective
RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
Focusing
Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
Mechanical Stage
Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
Condenser
Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
Viewing Body

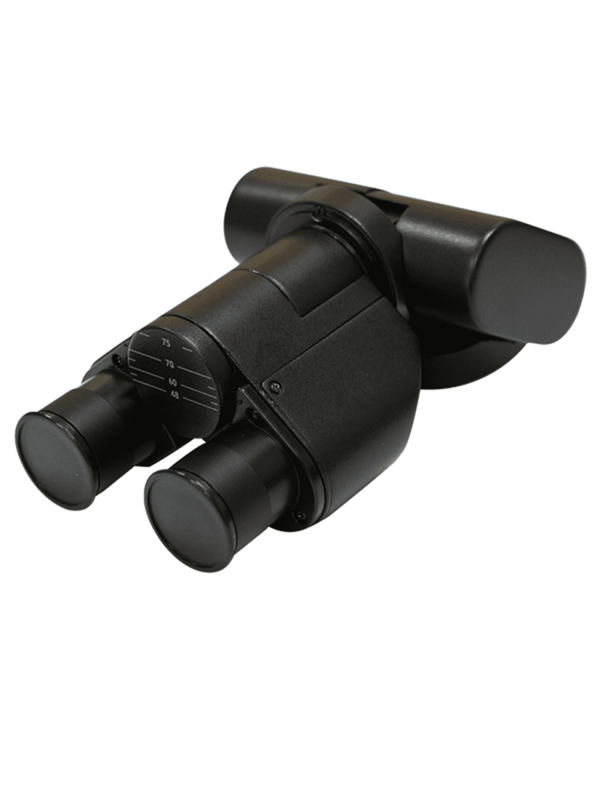

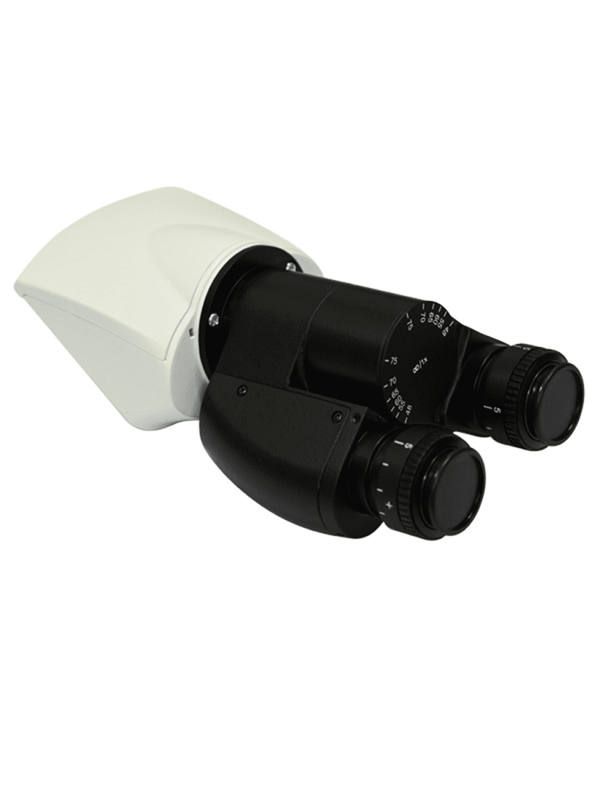

Binocular, Trinocular 30° and Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
Eyepiece
Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
Electronics
Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer
Illumination
True Köhler illumination with halogen 6V-30W lamp with variable illumination control. LED option available.
Shipping
Ships direct from manufacturer. Please contact us for current lead times.
Pointers & Micrometer Reticules Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits Dual Viewing Bridge Auxiliary Objectives and Eyepieces Cord Hanger Kit Digital Cameras and Adapters Soft Carrying Case
