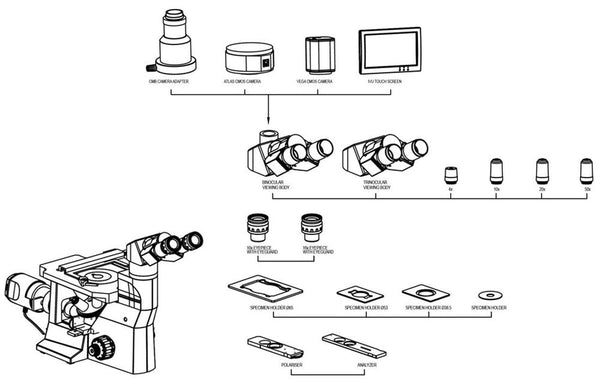

Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000_schematics
Labomed MET 400 Series Trinocular Inverted Metallurgical Microscope, 7129100MicroscopesMicroscopes_InvertedMicroscopes_Labomed7129100
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 front view gray background
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 pod vew, gray background
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 distant view gray
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 side view gray backgound
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000_side view
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000_binocular head
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000_schematics
Labomed MET 400 Series Trinocular Inverted Metallurgical Microscope, 7129100MicroscopesMicroscopes_InvertedMicroscopes_Labomed7129100
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 front view gray background
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 pod vew, gray background
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 distant view gray
Labomed MET 400 Inverted Metallurgical Microscope_Microscopes_Inverted_Microscopes_Labomed_7129000 side view gray backgound

Labomed MET 400 Series Binocular Inverted Metallurgical Microscope, 7129000

Sale price
$5,260 USD
List price
$5,537 USD
Labomed MET 400 Series Binocular Inverted Metallurgical Microscope, 7129000
The Labomed® MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.
Advantages of MET 400:
The ML Infinity Corrected Plan optical series promises image fidelity. Proprietary MaxLite™ coatings deliver superior anti-reflective and scratch resistant properties. Long working distance and efficient design provide for aberration-free imaging.  A dry 100x objective is optional.
A slide-in polarizing kit with built-in polarizer/analyzer can be added as an option, providing 360 degrees of light extinction.
An ultra bright 6V-30W light source with a high color rendition index faithfully illuminates specimens, particularly those used in color sensitive applications such as photomicrography.
MICROSCOPE SPECIFICATIONS
  • Optional

    100x Dry objective; Mechanical stage; Adapters for video and digital cameras

  • Stand

    Ergonomic sturdy stand made of anti-rust material

  • Focusing

    Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2um per division.

  • Illumination

    Koehler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100V - 240V universal power supply.

  • Stage

    Fixed stage with specimen holder - 3 types (38mm, 55mm, 65mm). Optional mechanical stage.

  • Electronics

    Universal power supply (110V-240V) with built-in voltage stabilizer

  • Viewing Body

    Siedentopf Binocular or Trinocular head; 30° inclined, fixed; IPD 52- 75mm

  • Eyepiece

    Focusable Wide Field eyepieces 10x/22mm, with foldable eye guard, antifungal.

  • Nosepiece

    Reverse angle quadruple nosepiece with click stops and rubber grip.

  • Objective

    ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective.

  • Packaged Content
    • Power Cable (6ft)
    • Nylon Dust Cover & Cleaning Cloth
    • Instapack Packaging

Ships directly from the manufacturer. Please contact us for current lead time.

  • Optional Accessories
    • Pointers & Micrometer Reticules
    • Phase and Fluorescence Kits
    • Auxiliary Objectives and Eyepieces
    • Digital Cameras and Adapters
    • Soft Carrying Case
