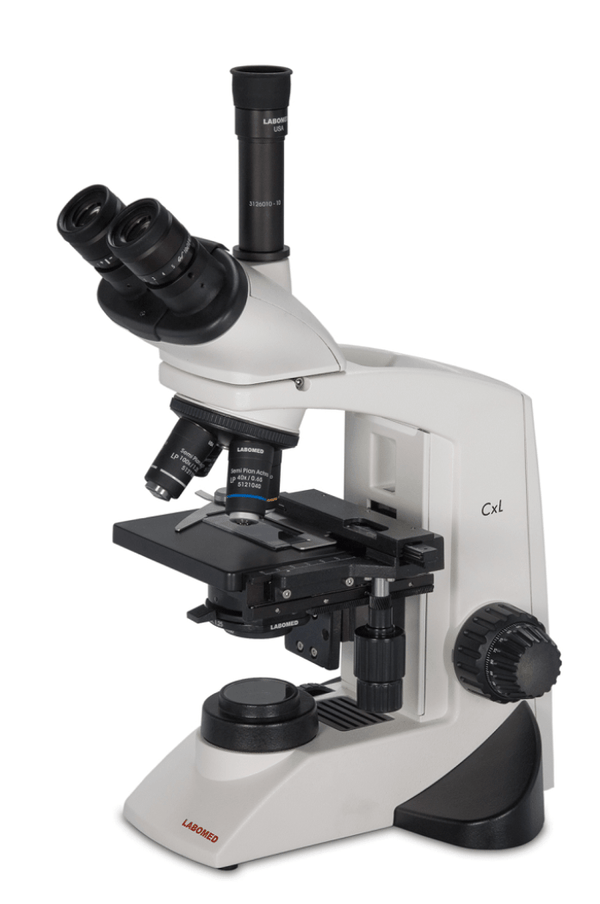

Labomed CxL Trinocular Series Microcopes (9135007, 9135012)

Sale price
$878 USD
List price
$925 USD
Model:4x/10x/40x LED (9135012)

Where Style Meets Function

Designed for both classroom and laboratory environments, the CxL reflects a sleek design composed of a durable aluminum stand, high throughput glass and optical coatings, and brass gears, all of which position the CxL to withstand the most demanding of user environments. And with lead-free optics and paints, the CxL is a truly eco friendly solution.

Advantages of CXL

A Captive Rotation feature enables users to easily and safely rotate the viewing head. Dual focusable eyepieces come standard.


LP series Semi-Plan optics promise crisp images at all magnifications thanks to a thoughtful design and high-efficiency coatings.

CxL Advantages

Users may choose between Halogen (approx. 2000 hours bulb life) or rechargeable LED (approx. 100,00 hours bulb life) illumination options.

CxL Advantages

MICROSCOPE SPECIFICATIONS
  • STAND

    Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

  • VIEWING BODY

    45° inclined, 360° captive rotatable trinocular head, IPD 54-74mmI

  • EYEPIECES

    Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

  • NOSEPIECE

    Quadruple nosepiece turret (Ball bearing type) with rubber grip

  • OBJECTIVE

    LP series DIN Semi-Plan Achromatic objectives 4X, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • MECHANICAL STAGE

    Stage 135 x 124mm with X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

  • CONDENSER

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

  • FOCUSING

    Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

  • ILLUMINATION

    LED or Halogen 6V-20W illumination with variable illumination control. Up to 100,000 hours of LED life and 2,000 hours of Halogen lamp life

  • ELECTRONICS

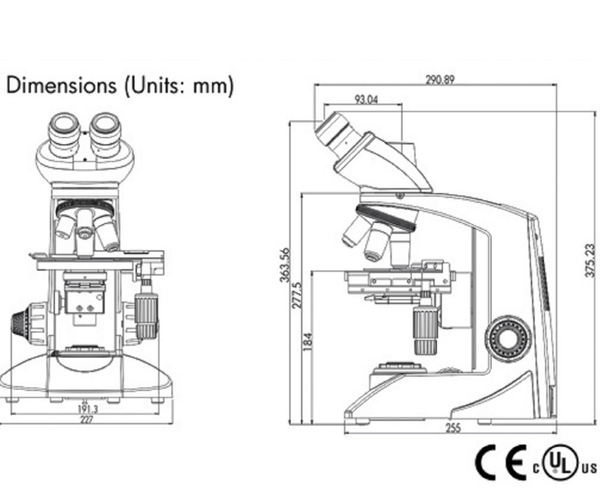

    Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer Dimensions (mm) Labomed CxL Microscope Line Drawing

  • Shipping

    • Ships directly from manufacturer.
    • Please contact us for current lead time.



 MODEL  OBJECTIVES  ILLUM POWER BENZ $   LIST $
9135012 4/10/40R  LED Rechargeable Battery  878 925
9135007 4/10/40R/100R  LED Rechargeable Battery  902 950



DOWNLOAD BROCHURE

DOWNLOAD MANUAL


Accessories (Optional)

  • Pointers & Micrometer Reticules Phase, Polarizing, and Dark Field Kits
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case
