Labomed TCM 400 Inverted Phase Binocular Microscope, 7125000

Sale price
$2,793 USD
List price
$2,940 USD
Options Available:Standard Head, 7125000

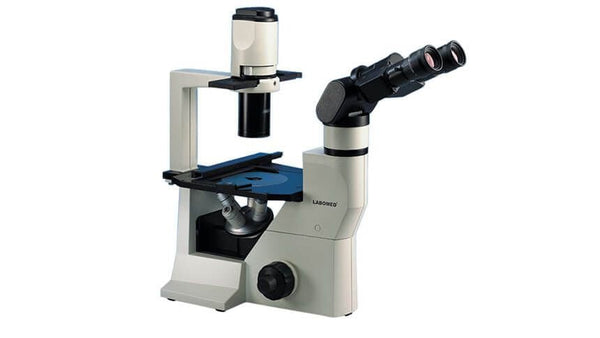

Labomed TCM 400 Inverted Phase Binocular Microscope, 7125000

Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.

Advantages of TCM 400:

LWD series long working distance objectives and a well-designed phase/brightfield illumination system yield sharp contrast images. A long working distance 0.8 N.A. phase condenser accommodates media containers with ease.
With an optional mercury HBO or LED epi-illuminator, the TCM 400 becomes a fully functional fluorescence microscope with a host of filter options.


The TCM 400 will seamlessly accommodate Labomed cameras, as well as 3rd party imaging solutions, enabling image capture and archiving.

MICROSCOPE SPECIFICATIONS
  • Illumination

Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life.

  • Viewing Body

Binocular 30° or Ergonomic Tiltable Binocular tube (0°-25°), IPD 52-75mm

  • Focusing

Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm

  • Mechanical Stage

    Fixed plain stage 160mm x 240mm

  • Stand

    Ergonomically designed sturdy stand (aluminum die-cast)

  • Condenser

    Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage)

  • Electronics

    Universal power supply (110V-240V) with built-in voltage stabilizer

  • Eyepiece

    Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings

  • Nosepiece

    Quadruple reverse angle turret (Ball bearing type) with rubber grip

  • Packaged Contents
    • Power Cable (6ft)
    • Nylon Dust Cover & Cleaning Cloth
    • Instapack Packaging
  • Objective

    LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings

Ships direct from manufacturer. Please contact us for current lead times.

 MODEL VIEWING HEAD BENZ $ MSRP $
7125000 Standard Binocular Head 2793.00 2940.00
7126000 Ego Binocular Head 3795.00 3995.00

DOWNLOAD MANUAL
  • Optional Accessories
    • Pointers & Micrometer Reticules
    • Phase and Fluorescence Kits
    • Auxiliary Objectives and Eyepieces
    • Digital Cameras and Adapters
    • Soft Carrying Case
