Meiji: EM Modular Stereo System: Body/Pod Zoom (#EMZ)

Meiji

  • $1,197.00

Ask a Question

Meiji Techno Stereo Microscopes come in two different configurations.

1.) The most popular configuration consists of our modular EMZ, EMF & EMT components, purchased separately to create the perfect instrument for your application.

2.) We also offer all-in-one, non-modular, completed configuration systems. You will find these systems listed as "Non-Modular" in the product listing.

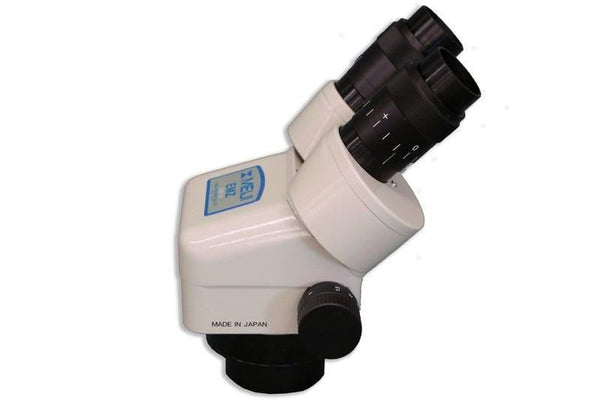

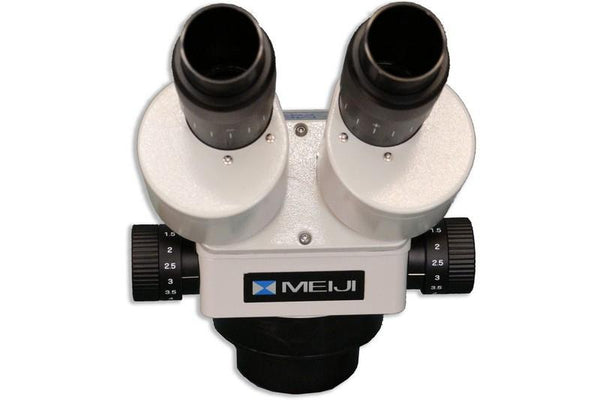

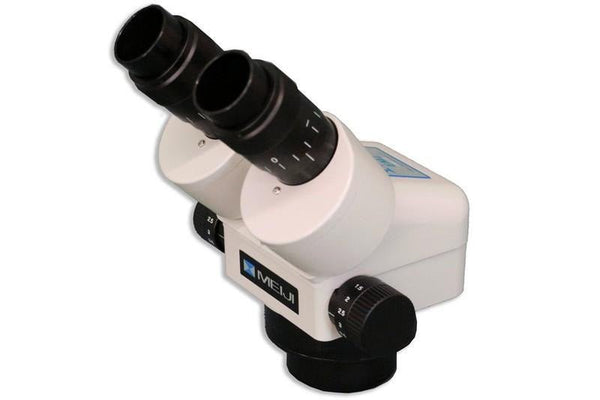

EMZ STEREO ZOOM BODY MODULE

The body is the heart of our modular zoom stereo microscope design. It contains the objectives and prisms that capture the image of the specimen, magnify it, and direct it to the eyetubes. The body, by itself, cannot be used to view an object; it also needs eyepieces that further magnify the image and allow the viewer to see, and it must be mounted on a stand that has a focus mechanism for raising and lowering the body.

Zoom stereo microscope bodies are the most flexible because they offer a wider range of magnification than turret (EMT) or fixed (EMF) bodies. Much like the zoom lens on a camera, zoom objectives increase and decrease magnification progressively, causing the specimen to grow or shrink smoothly in the eyes of the viewer. Copies of our zoom microscopes are made in many countries throughout the world. However, our products hold their parfocality or focus throughout the zoom range and not all microscope brands seem to do this which is one reason why our products retain their value for many, many years.

With the modular configuration, additional items are needed to create a full microscope system. The following components are normally ordered:

  • Stereo Microscope Body: Zoom (EMZ), Turret (EMT), or Fixed (EMF)
  • Eyepieces: Requires 2 of identical magnification
  • Stand: Pole stand, rigid arm stand, boom stand, heavy duty boom stand, wide surface stand or articulated arm stand
  • Illumination Source: Fiber optic halogen, fiber optic LED, fluorescent ring or LED
  • Auxiliary Lens: Optional

For assistance in determining the proper components for your system please call or email with details regarding your application.

EMZ SERIES BODIES

MODEL OBJECTIVE WORKING DISTANCE

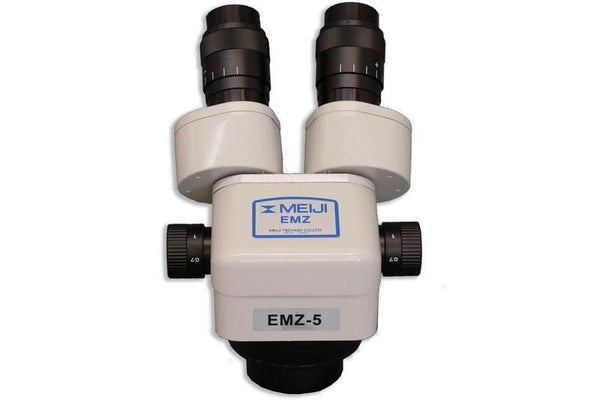

EMZ-5 0.7X to 4.5X 93mm
EMZ-5D (with Detent) 0.7X to 4.5X 93mm

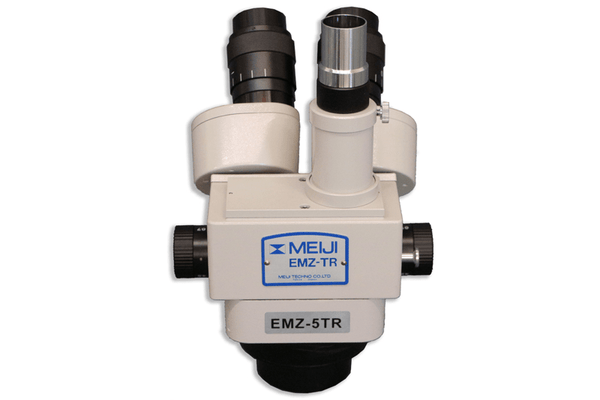

EMZ-5TR

Directs light to right eyetube and trinocular tube simultaneously.

0.7X to 4.5X 93mm

EMZ-5TRD (with Detent)

Directs light to right eyetube and trinocular tube simultaneously.

0.7X to 4.5X 93mm

EMZ-8TR

Directs light to both eyetubes and trinocular tube simultaneously.

0.7X to 4.5X 104mm

EMZ-8TRD (with Detent)

Directs light to right eyetube and trinocular tube simultaneously.

0.7X to 4.5X 104mm
EMZ-8U * 0.7X to 4.5X 104mm
EMZ-8UD * (with Detent) 0.7X to 4.5X 104mm

EMZ-8TRU *

Directs light to both eyetubes and trinocular tube simultaneously.

0.7X to 4.5X 104mm
EMZ-10 0.7X to 4.5X 10mm
EMZ-13 1.0X to 7.0X 90mm

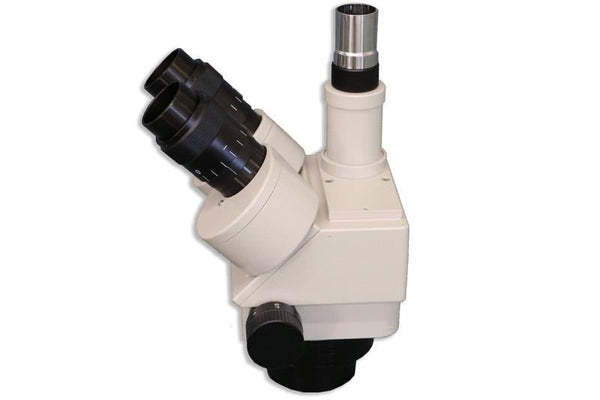

EMZ-13TR

Directs light to both eyetubes and trinocular tube simultaneously.

1.0X to 7.0X 90mm
EMZ-13VX ** 0.4X to 7.0X 90mm

MA978: Rotatable 1/4 Wave Plate for use with EMZ Series bodies also available here.

*EMZ-8U requires FL150/12 fiber optic light guide and FL150/115 power supply.
**EMZ-13VX requires FL150/30 fiber optic light guide and FL150/115 power supply and MA978 - 1/4 wave plate in rotatable mount.
