The M18 compound microscope series features infinity corrected optics and is ideal for college laboratories, veterinary, and medical applications. Available with either binocular or trinocular heads, this research level microscope also incorporates energy-efficient Koehler illumination and wide field 20mm eyepieces for a very crisp image.

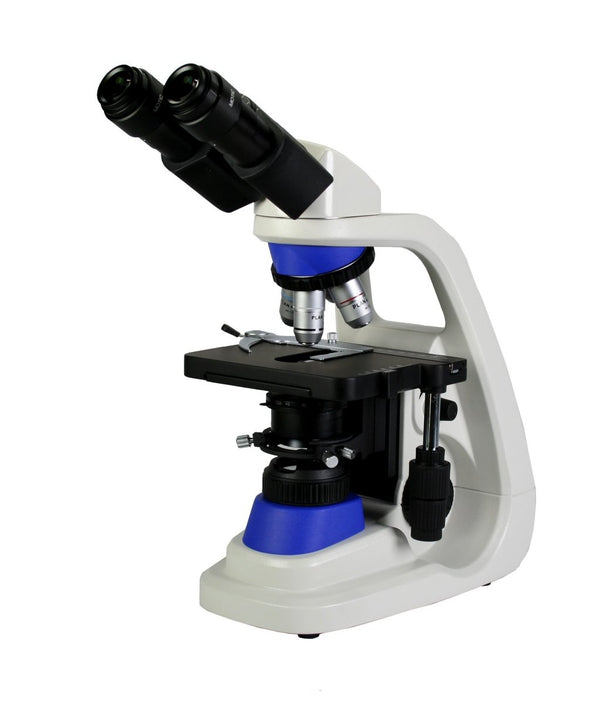

The M18 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with binocular head, this research level microscope also incorporates Koehler illumination and wide field 20mm eyepieces for a very crisp image.
OPTICAL SYSTEM
Widefield 10x /20mm eyepieces
Binocular viewing head with 30° inclined eyepieces
Diopter and interpupillary adjustment 54mm to 76mm
Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses.
Parfocalled, parcentered and color-coded
Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives.
Mounted in reverse position to facilitate ease in changing slides
ILLUMINATION
Koehler
Illumination on/off switch
ELECTRICAL
110V - 220V switching power supply, unit shipped with American plug
FOCUSING
Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
STAGE
Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm
FRAME
Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
Height: 14-1/2 in. (369mm). Net wt. 30.9 lbs (14.0 kgs)
PACKING
Head and frame in molded styrofoam container with vinyl dustcover
Ship wt. 21 lbs, Dimensions 21x20x12 in, Dim wt. 37lbs
