National 440 Series Zoom Stereo Microscope

National 440 Series Zoom Stereo Microscope. The 440 Series is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 110mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.

MAGNIFICATION

• 0.75X to 4.5X Zoom (7.5 - 45X Magnification)

OPTICAL SYSTEM

• Paired widefield 10x eyepieces
• 45° inclined, with dual diopter adjustments
• Interpupillary adjustment from 55mm to 75mm
• Accepts 23mm eyepiece reticle.
• Viewing head rotates 360°.
• Continuous magnification from 7.5x thru 45x.

FOCUSING

• Large dual focusing knobs with slip clutch to prevent damage to mechanism.
• Tension adjustment eliminates focus 'drift'.

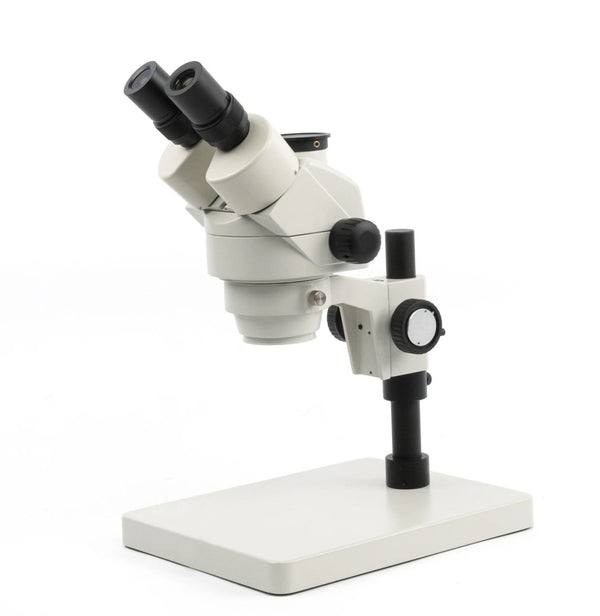

PLAIN STAND ILLUMINATION

• None

PLAIN STAGE

• No Stage Clips

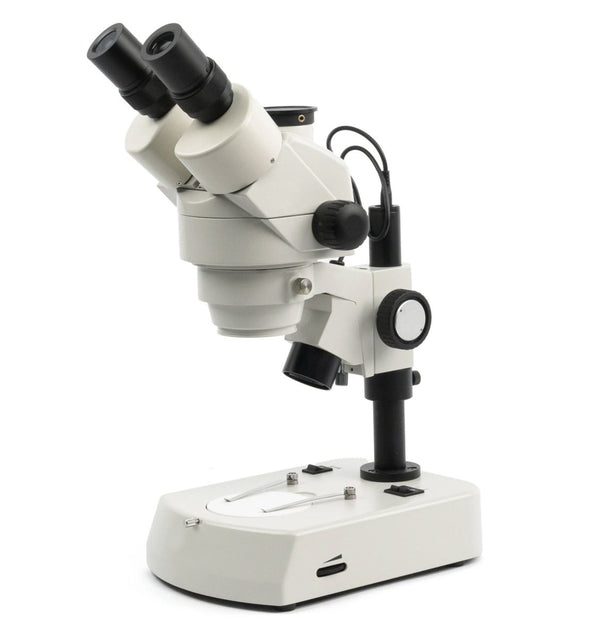

POST STAND ILLUMINATION

• Top light is LED with directional beam and rheostat control.
• Bottom light is LED for cool operation, greater light efficiency.
• Base mounted light controls permit choice of top only, bottom only, or dual illumination.
• Heavy-duty 3-wire grounded cord and plug.
• 110V-240V internal auto-switching power supply.
• Supplied with American style IEC power cord.
• Additional wall adapter for 240V operation required.

POST STAGE

• Two 80mm stage plates (frosted glass and reversible black/white plastic contrast plates).
• Blue filter for transmitted light.
• Locked-on stage clips.

FRAME

• Professional, all-metal frame, gray enamel finish.
• Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
• Height: 340mm (13-3/8 in.) extends to 433mm (17 in.) for larger objects.
• Base width: 171mm (6-3/4 in.), Base depth: 242mm (9-1/2 in.)
• Net wt. 5.4 kgs (12 lbs)

PACKING

• Molded styrofoam container with rubber eyeshields and vinyl dustcover.
• Individual: Ship wt. 7.7 kgs (17 lbs), Dimensions 550x375x375mm (22x15x15 in.)
• Master carton pack 2 each: Ship wt. 14.4 kgs (32 lbs), Dimensions 475x375x475mm (19x15x19 in.)

Ships directly from manufacturer. Please contact us for current lead times.
