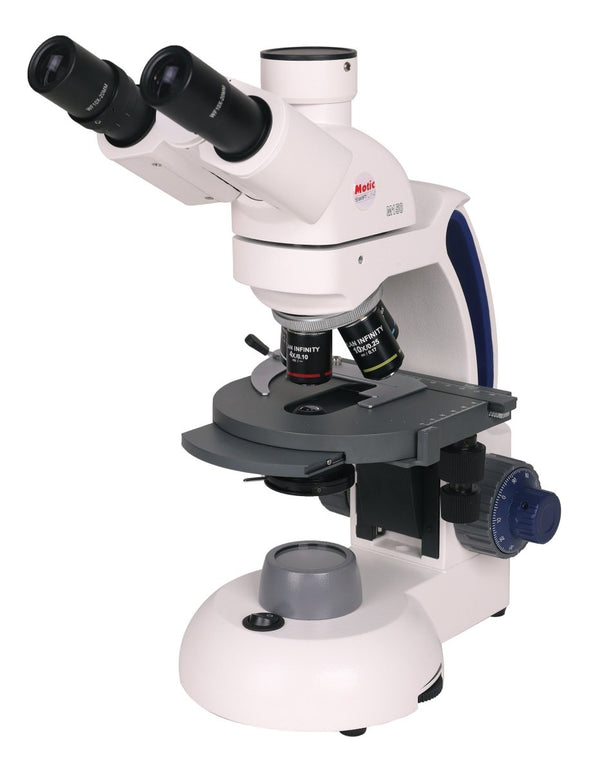

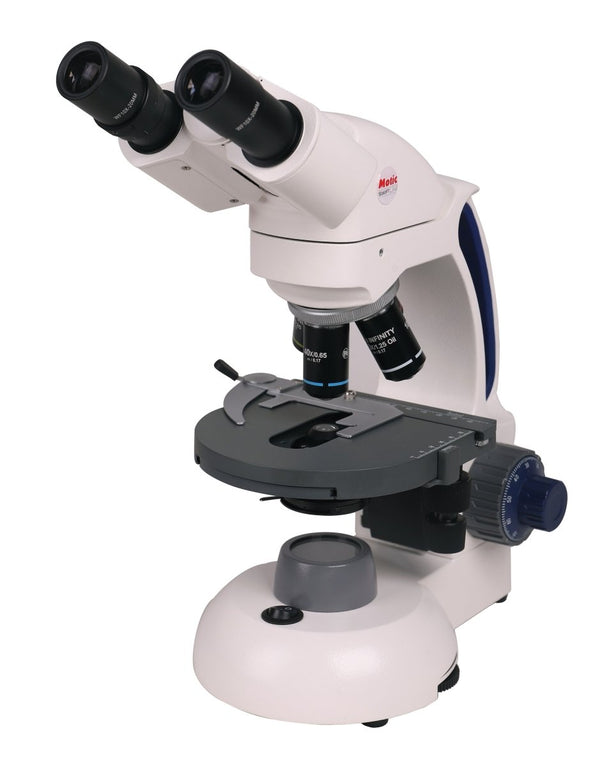

Motic Swift Line M3800 Series Compound Microscope

Motic

  • $779.00 USD

Ask a Question

The Motic Swift Line M3800 series continues the tradition for value and quality. Packed with standard research features, this series is ideal for advanced high school, biology, college, veterinary, medical or technical applications. The innovative design with a curved handle encourages proper handling, while variable LED and smooth coaxial focusing add to the microscope's appeal. This model can be used corded and cordless.
M3802CT-3 and M3802CT-4 designed with built-in camera port! MA15602 Video C-mount adapter and Moticam sold separately.

 MODEL HEAD OBJ BENZ $ LIST $
M3802CB-3 Binoc 4xD, 10xD, 40xRD 779.00 820.00
M3802CB-4 Binoc 4xD, 10xD, 40xRD, 100xRD  813.20 856.00
M3802CT-3 Trinoc
4xD, 10xD, 40xRD 931.95
981.00
M3902CT-4 Trinoc 4xD, 10xD, 40xRD, 100xRD 966.15 1017.00
OPTICAL SYSTEM
  • Widefield 10x /18mm eyepieces.
  • M3802CB-2, M3802CB-4 - Binocular viewing head with 45° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm.
  • M3802CT-3, M3802CT-4 - Trinocular viewing head with 45° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm, built-in camera port
  • DIN standard objectives. Semi-plan lenses. All are parfocalled, parcentered and color-coded.
  • M3802CB-3, M3802CT-3 - 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.)
  • M3802CB-4, M3082CT-4 - 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.), and 100xR (1.25 N.A.)
  • Objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides.
ILLUMINATION
  • LED light rated up to 50,000 hours of life, illumination equal to a 20 watt tungsten bulb.
  • Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged, no danger of overcharging batteries and shortening battery life. No expensive recharger station needed/ Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
  • Single 8 hour charge allows up to 50 hours of use.
ELECTRICAL
  • 110V - 220V switching power supply, unit shipped with American plug.
FOCUSING
  • Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
STAGE
  • Large 5-3/4 in. x 4-3/4 in. (143mm x 120mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
  • Built-in 1.25 Abbe condenser has iris diaphragm.
FRAME
  • Base dimensions: 9-1/4 in. x 6 in. (235mm x 151mm)
  • Height: 14-1/4 in. (362mm). Net wt. 11 lbs (24.3 kgs).
PACKING
  • Head and frame in molded styrofoam container with vinyl dustcover.
  • Individual: Ship wt. 16 lbs (7.3 kgs), Dimensions 23x17x11 in. (58x43x28 cm.)
  • Master carton pack 2 each: Ship wt. 46 lbs (20.9 kgs), Dimensions 22x18x19 in. (46x46x48 cm.)

    DOWNLOAD MANUAL
    DOWNLOAD DATA SHEET
